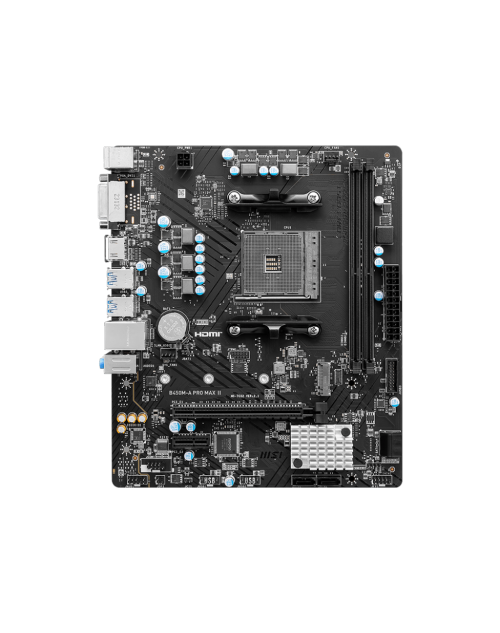

MSI B450M-A Pro Max II DDR4 Motherboard

23,500/=

Availability: In Stock

Brand: MSI

Product Code: MSI

Tags: MSI B450M-A Pro Max II DDR4 Motherboard

Qty:

Description
Reviews (0)

DESCRIPTION :

CHIPSET		AMD B450

CPU		Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series an
		1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
		Socket AM4

MEMORY		2x DDR4, Maximum Memory Capacity 64GB
		Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
		Supports Dual-Channel mode
		Supports non-ECC, UDIMM memory
		Supports ECC UDIMM memory (non-ECC mode)
		Supports un-buffered memory

ONBOARD GRAPHICS		1x HDMI™
		Support HDMITM 1.4, maximum resolution of 4K 24Hz*
		1x DVI
		Support DVI-D, maximum resolution of 1920x1200 60Hz
		*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT		1x PCI-E x16 slot
		1x PCI-E x1 slot
		PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
		PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

STORAGE		1x M.2
		M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
		4x SATA 6G

RAID		Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB		2x USB 2.0 (Rear)
		4x USB 2.0 (Front)
		4x USB 3.2 Gen1 Type A (Rear)
		2x USB 3.2 Gen1 Type A (Front)

LAN		Realtek® 8125 2.5Gbps LAN controller

AUDIO		Realtek® ALC897 Codec
		7.1-Channel High Definition Audio

INTERNAL IO		1x Power Connector(ATX_PWR)
		1x Power Connector(CPU_PWR)
		1x CPU Fan
		1x System Fan
		2x Front Panel (JFP)
		1x Chassis Intrusion (JCI)
		1x Front Audio (JAUD)
		1x Com Port (JCOM)
		1x TPM pin header(Support TPM 2.0)
		4x USB 2.0 ports
		2x USB 3.2 Gen1 Type A ports

OPERATING SYSTEM		Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO		Matx
		200mmx236mm
